The Link

The connection of two aquapark features is essential to creating a safe and fun experience on the water. The Link connection system provides a safe walkway between two features and a high strength attachment. The cover attaches to the products with 4 layers of marine grade hook and loop and 4 316 Stainless steel buckles.

The Link is fully self-contained making installation or de-installation quick and easy. There is no need to swim underneath the products to make a strong connection – all steps can be done by a single person without any special tools or equipment. This makes expanding a park or changing the layout simple for all park owners.

The Link in Action

image 1
image 1
image 1
image 1
image 1
image 1
image 1
image 1
image 1
image 1
image 1
1/11

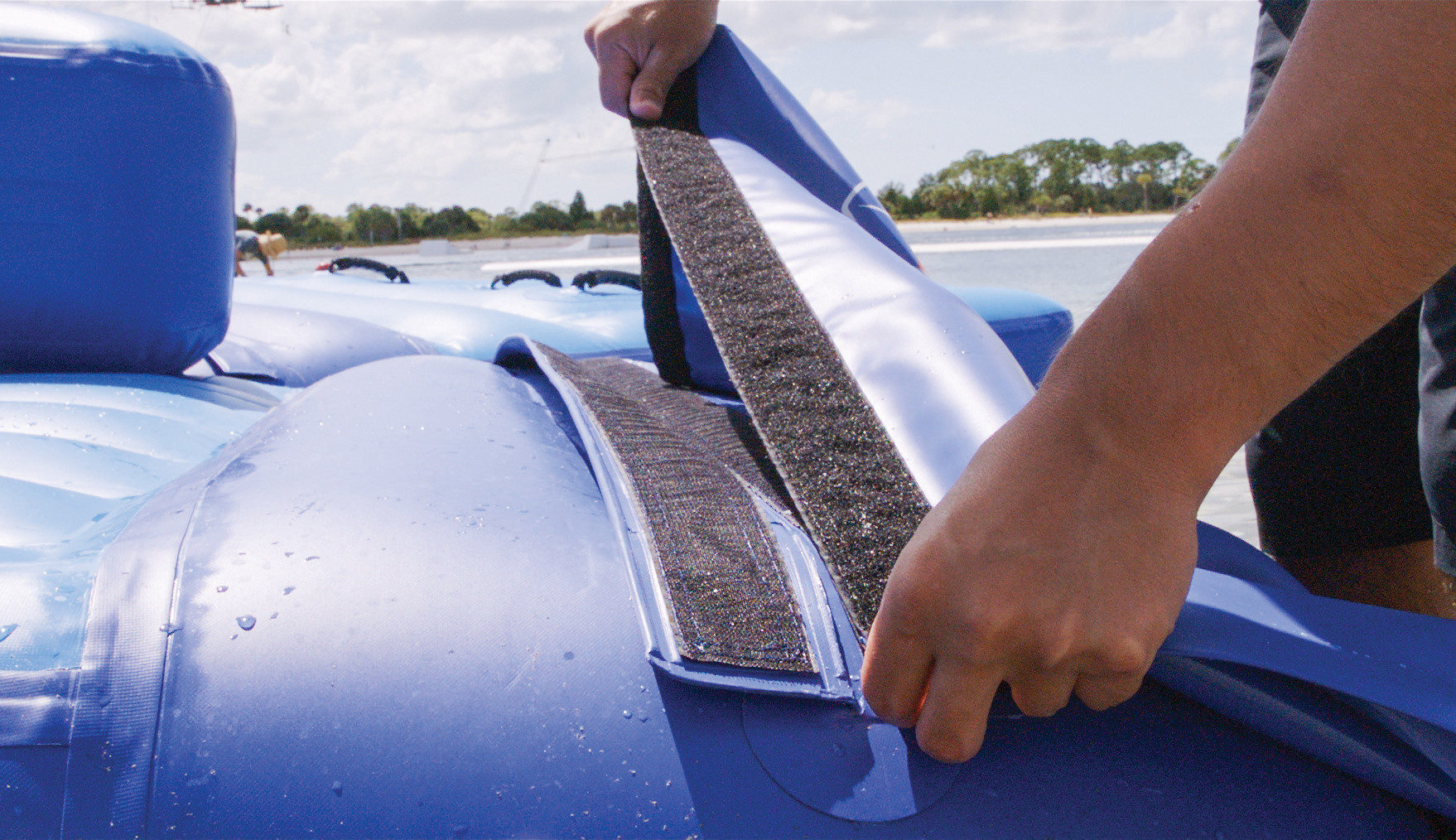

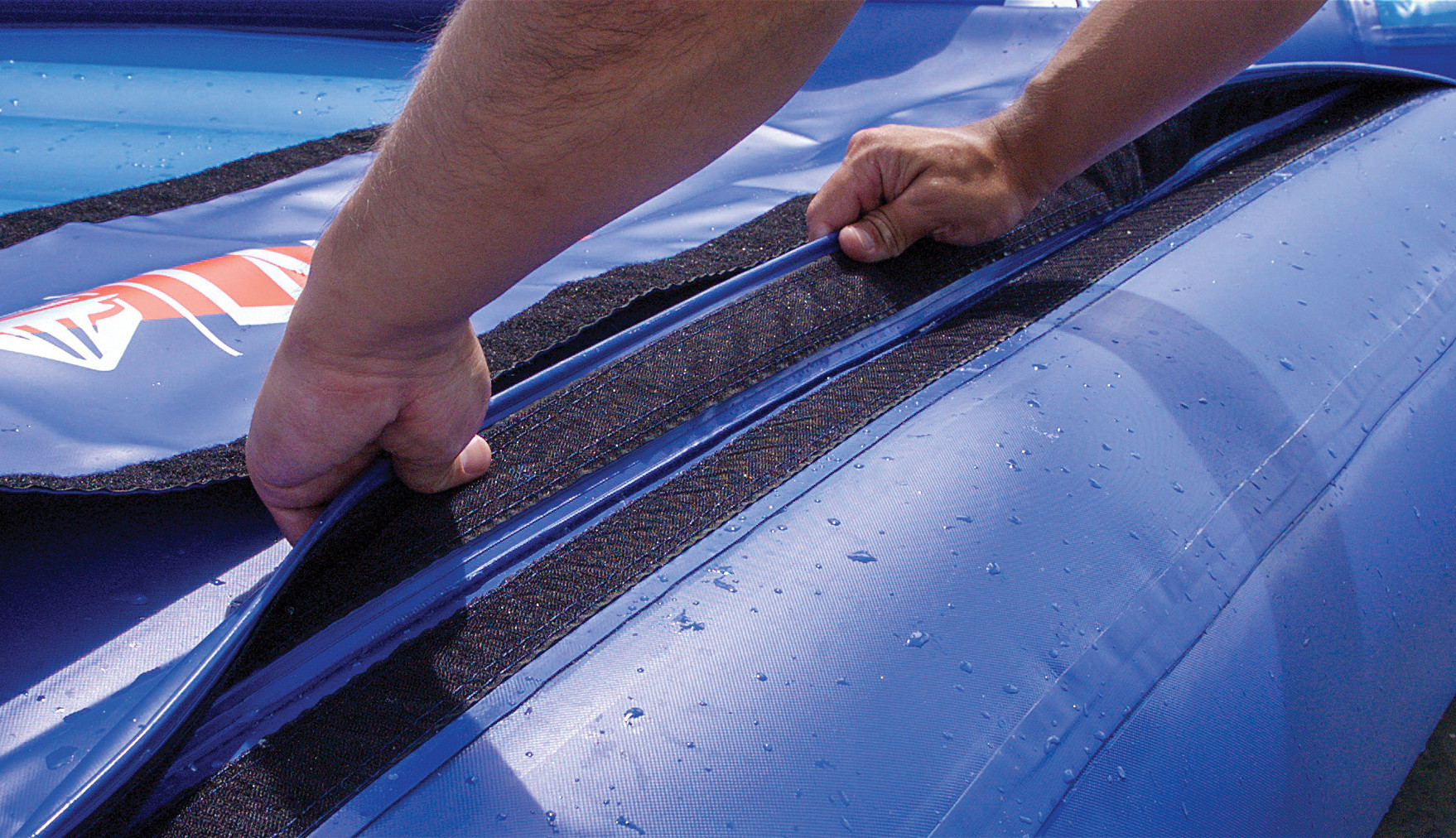

1 Open the double sided hook flap on feature 1.

2/11

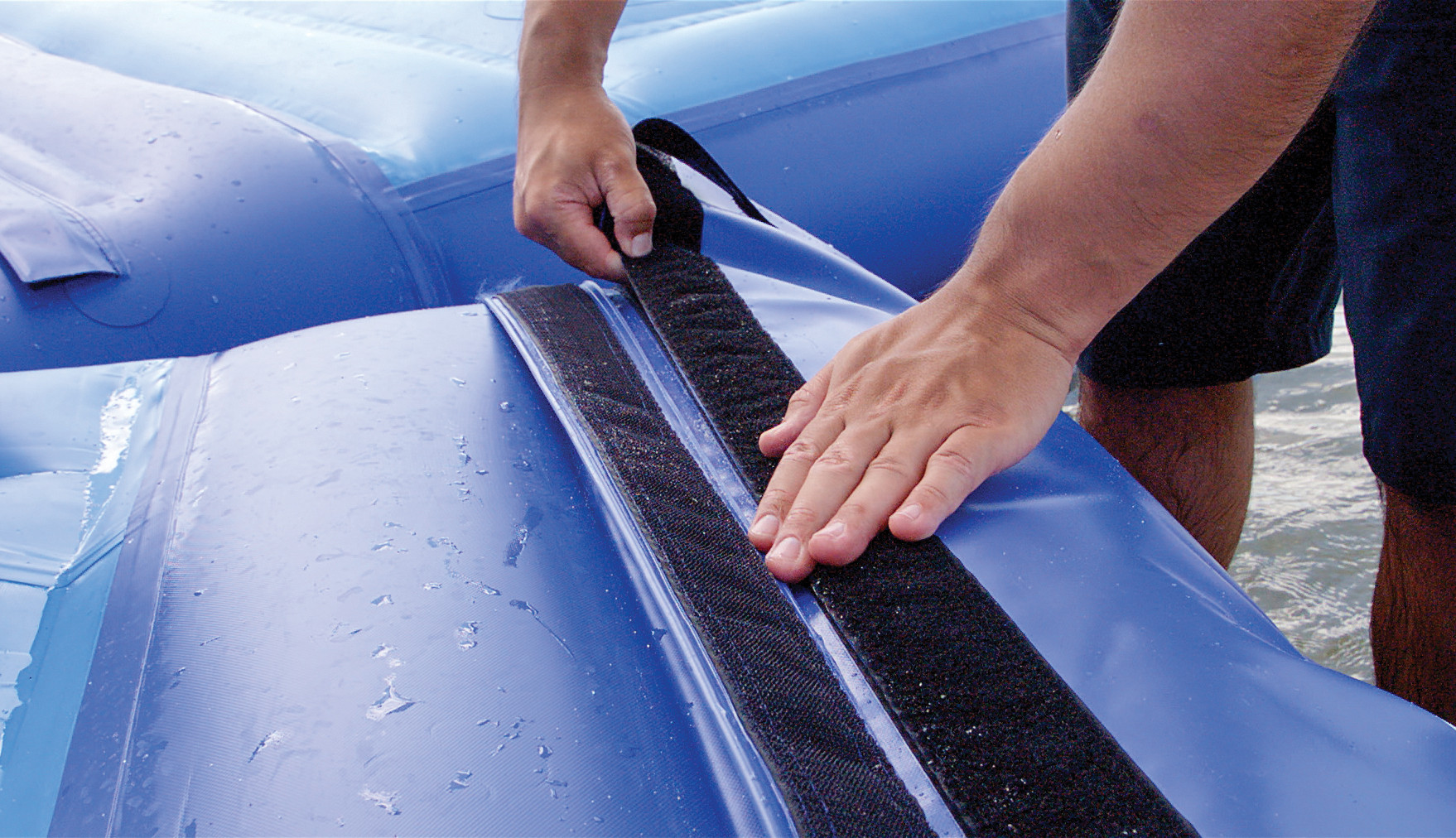

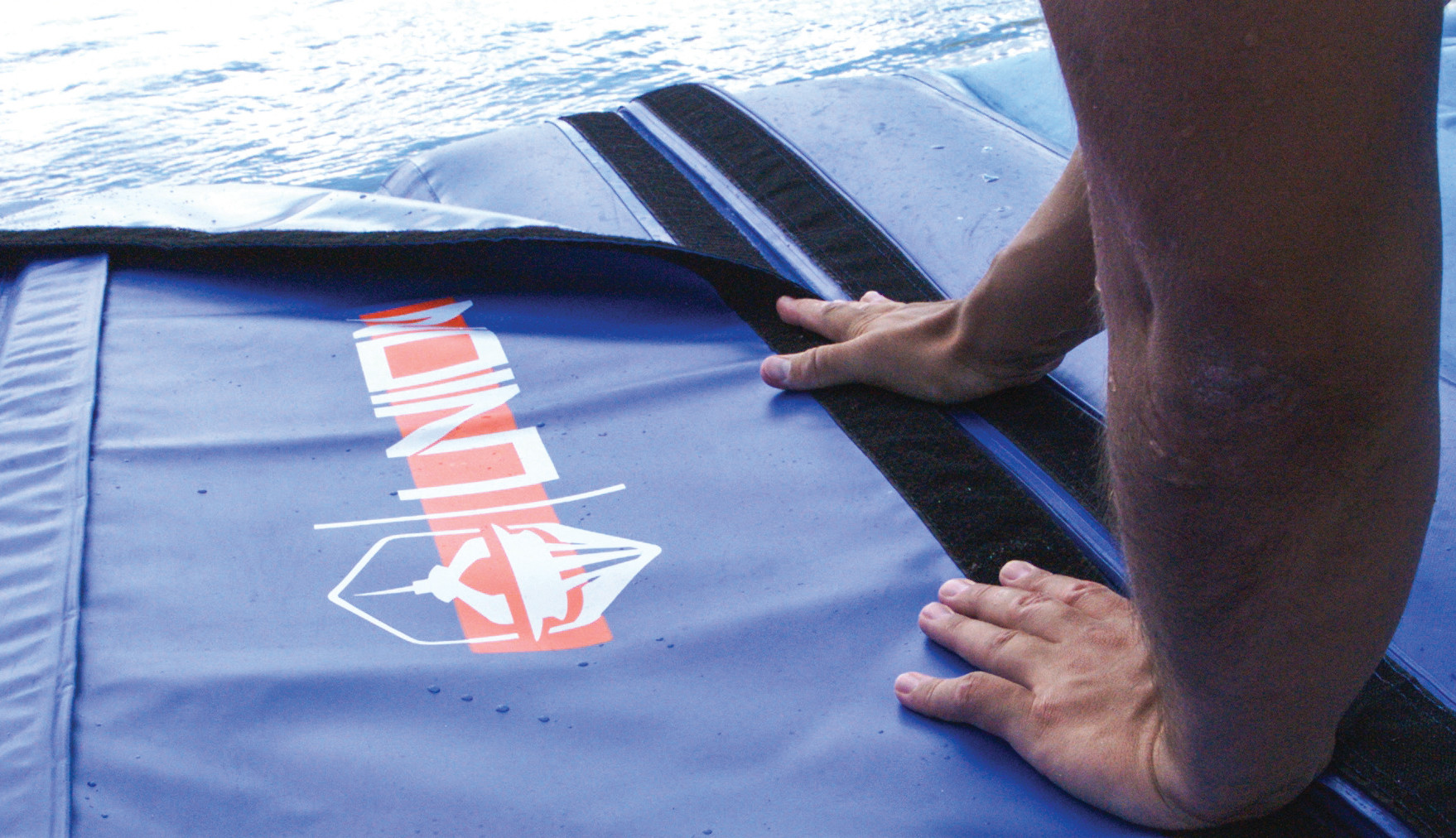

2 Align the double-sided loop on the cover with the hook on the feature. Make sure the Union logo is visible on the cover.

3/11
4/11

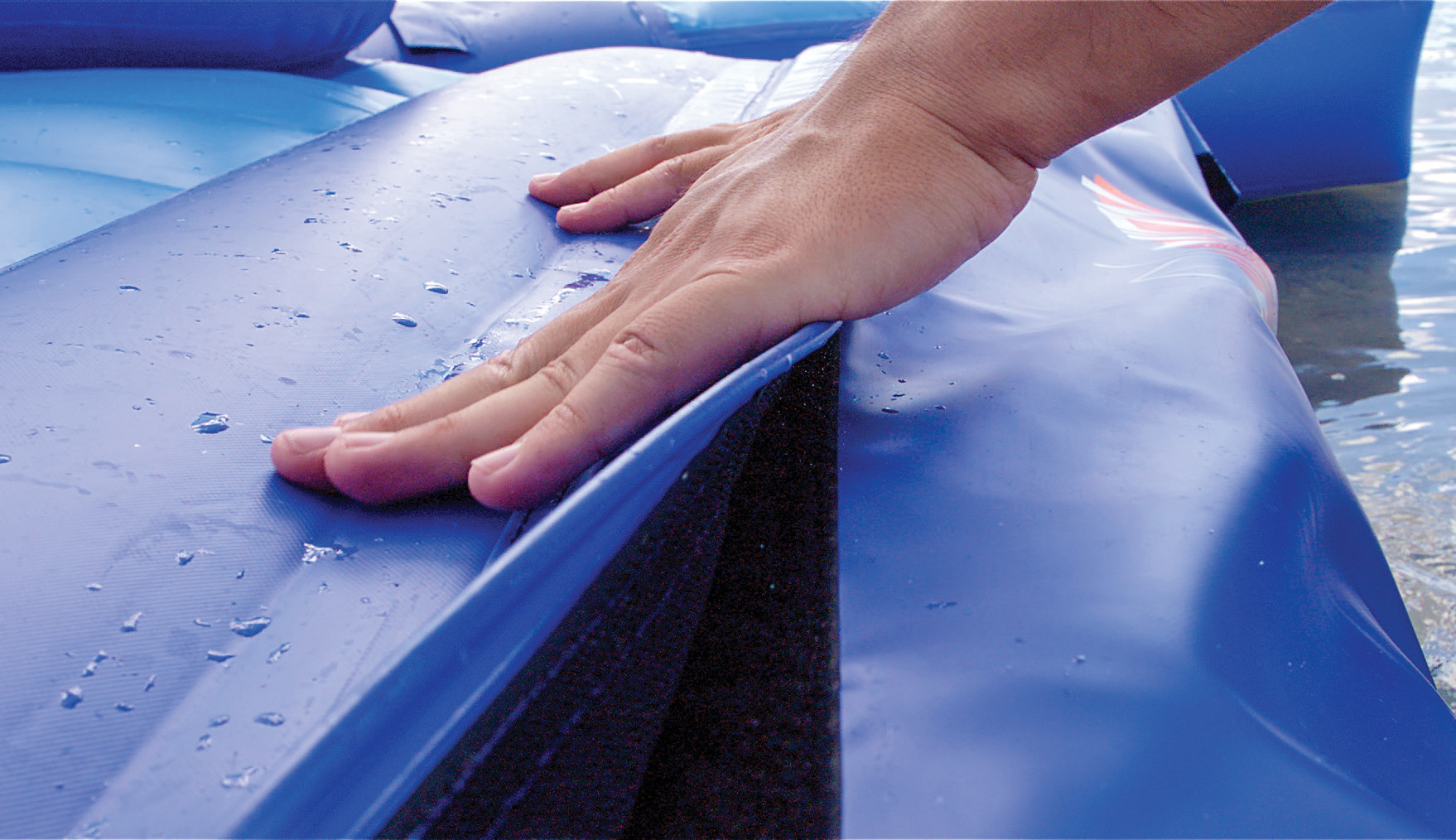

3 Close the hook flap on the feature.

5/11

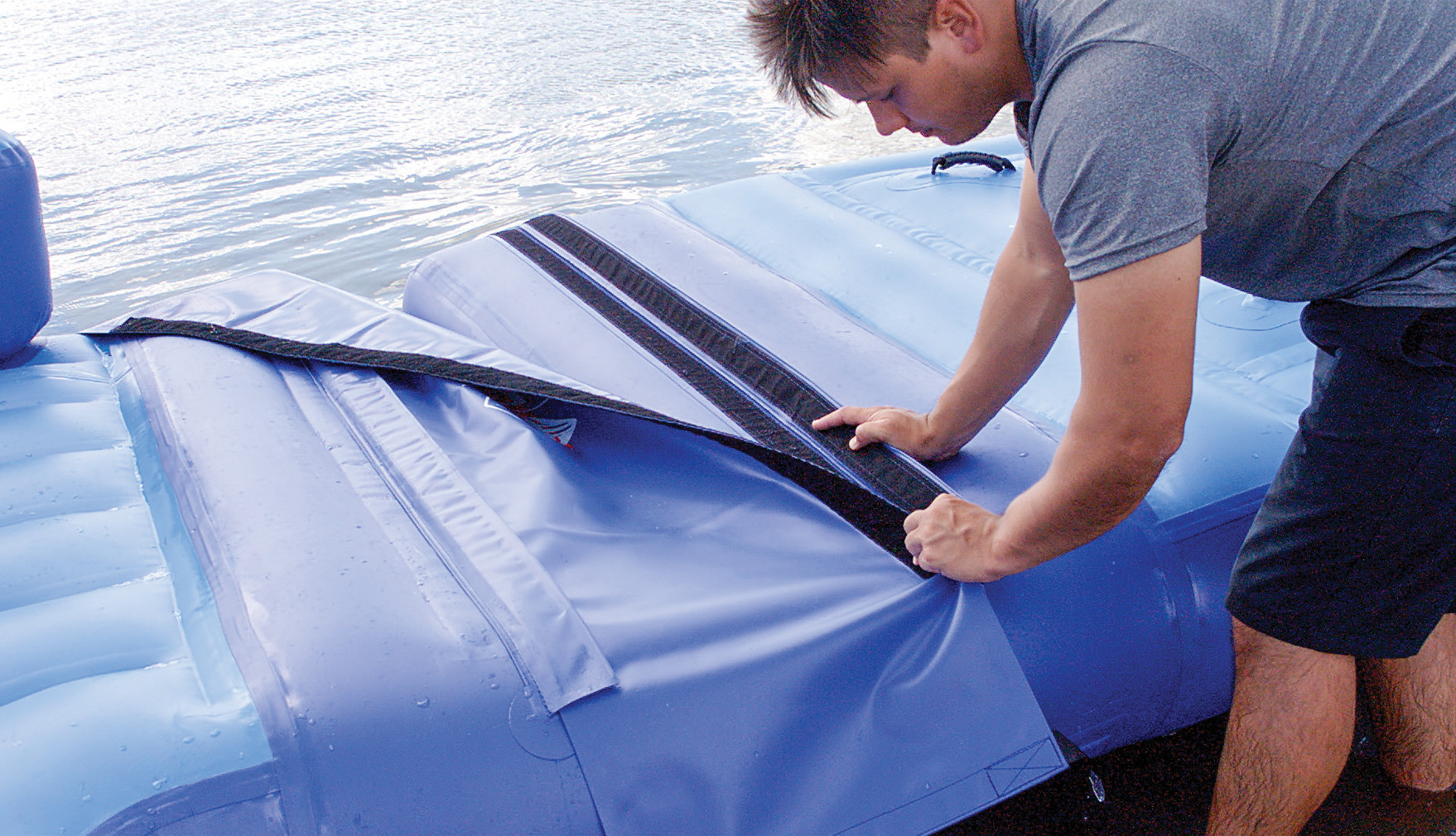

4 Repeat steps 1-3 on feature 2.

6/11
7/11

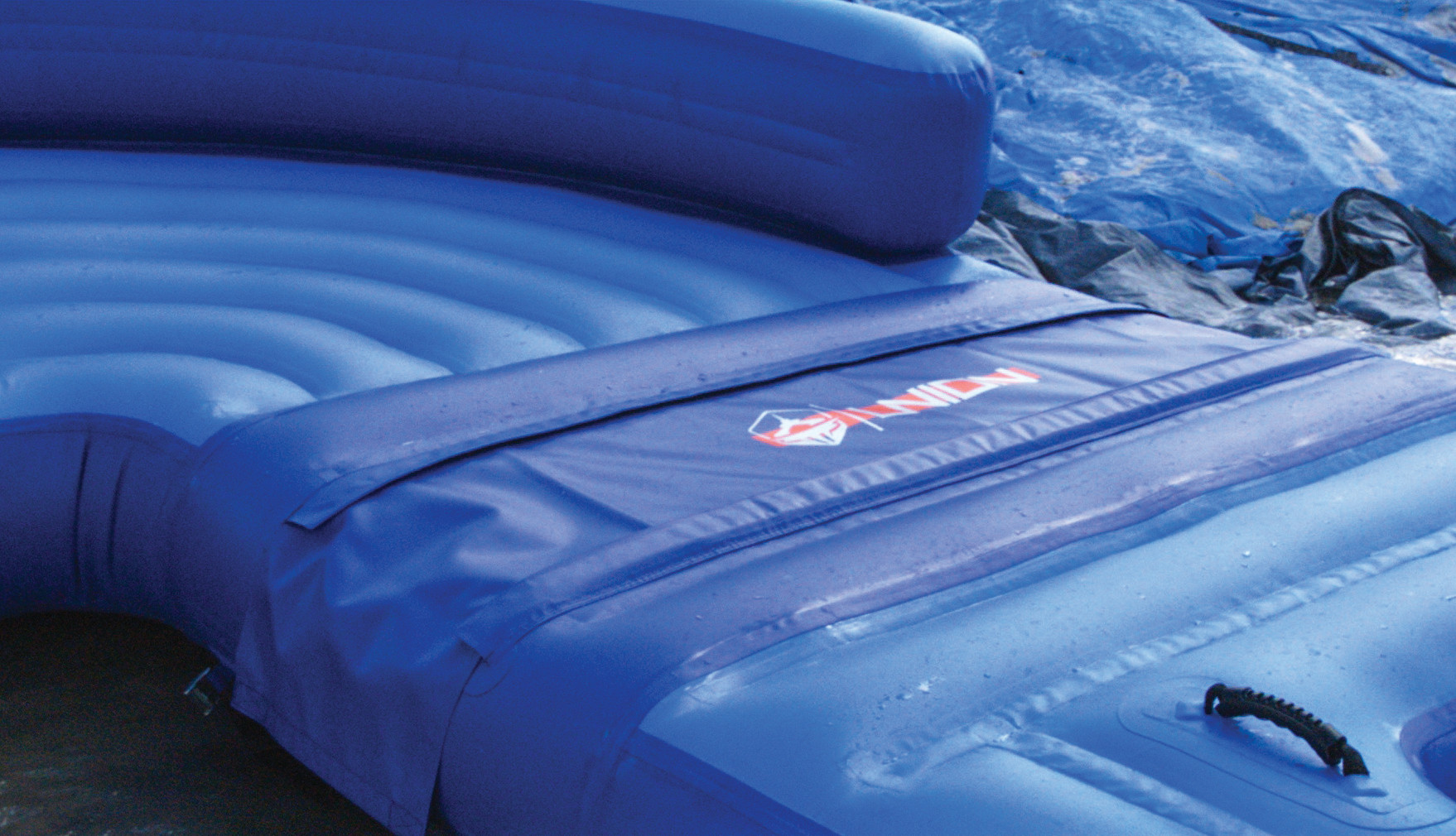

5 Product should look like this before proceeding.

8/11

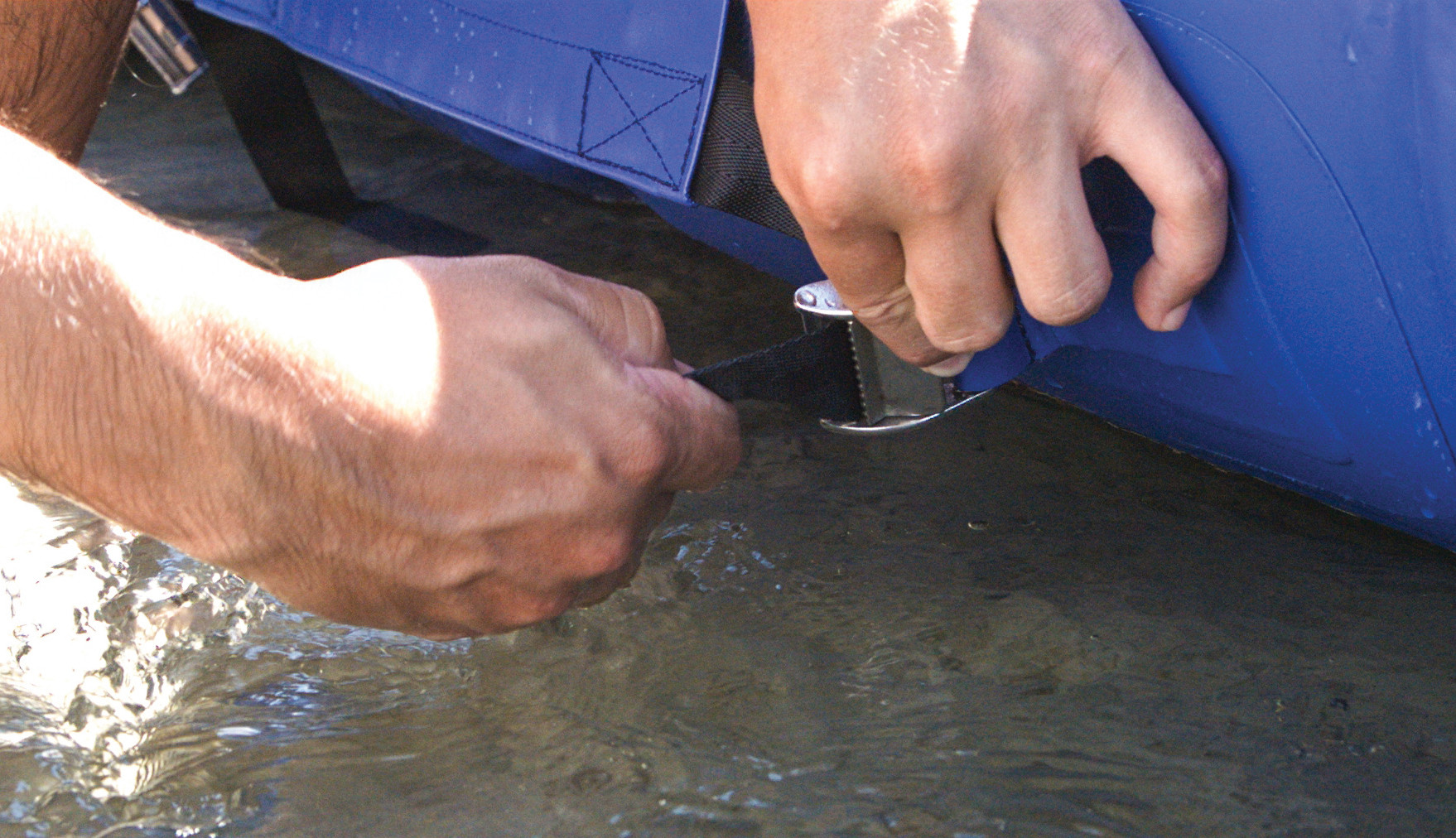

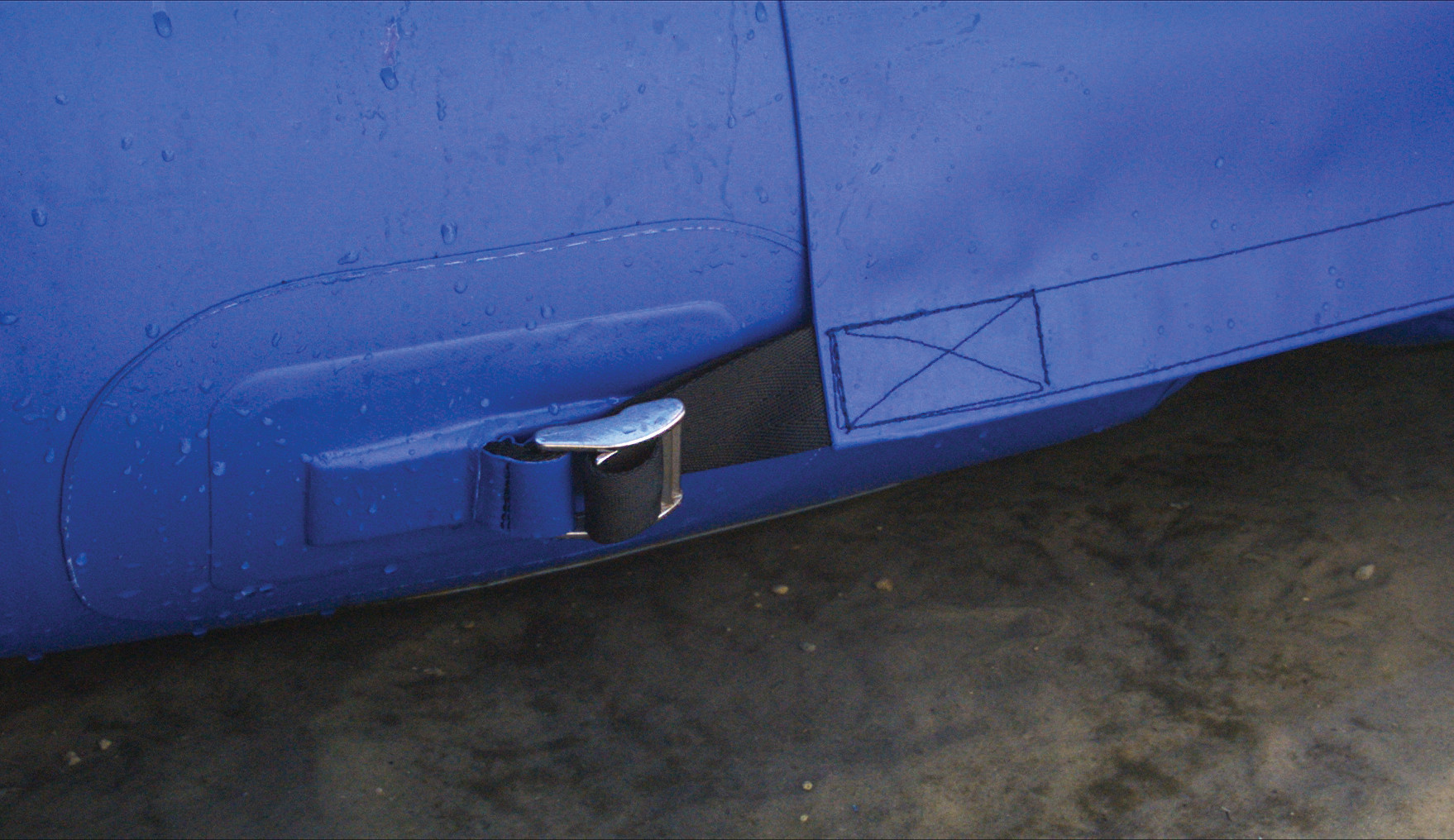

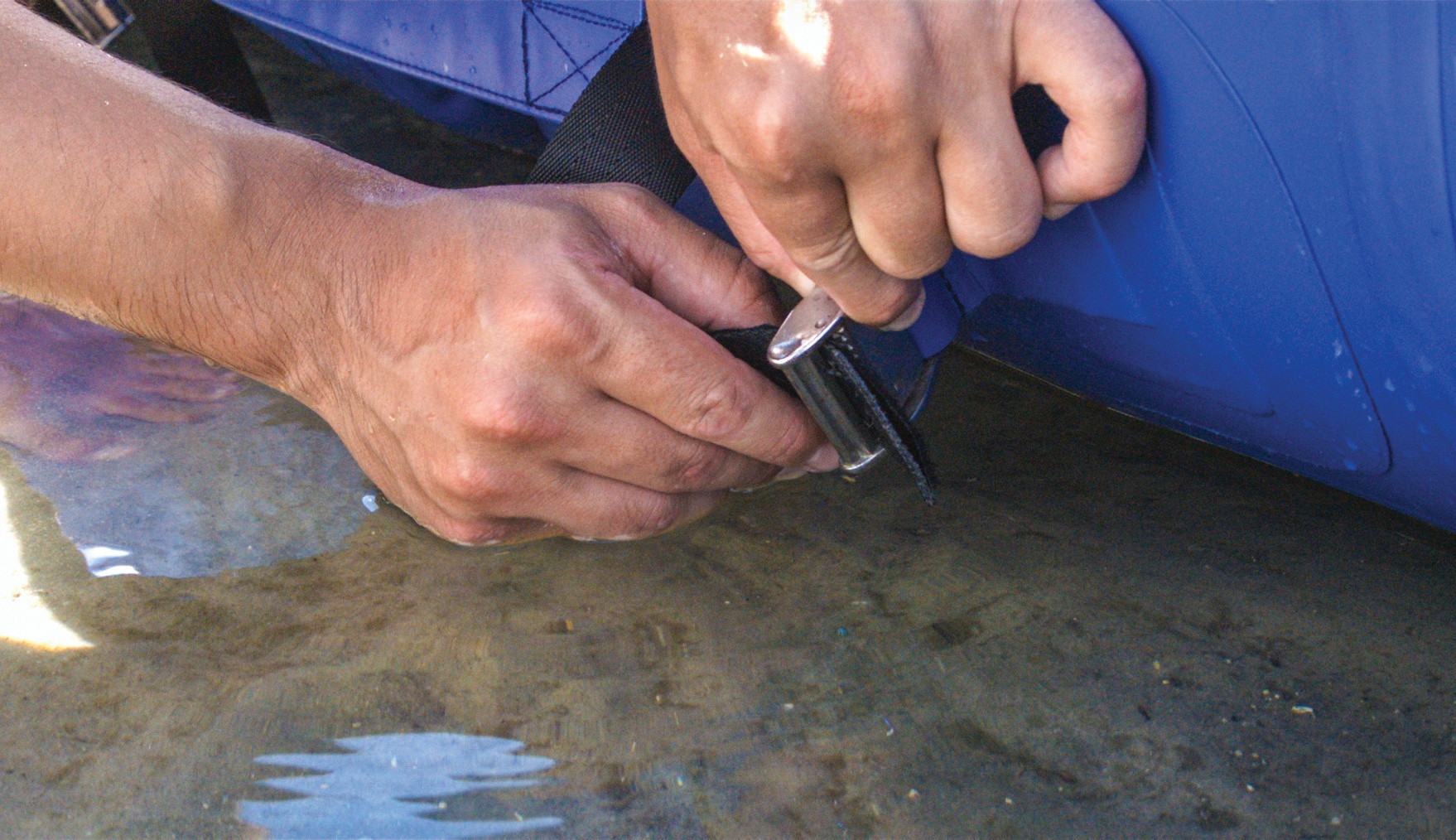

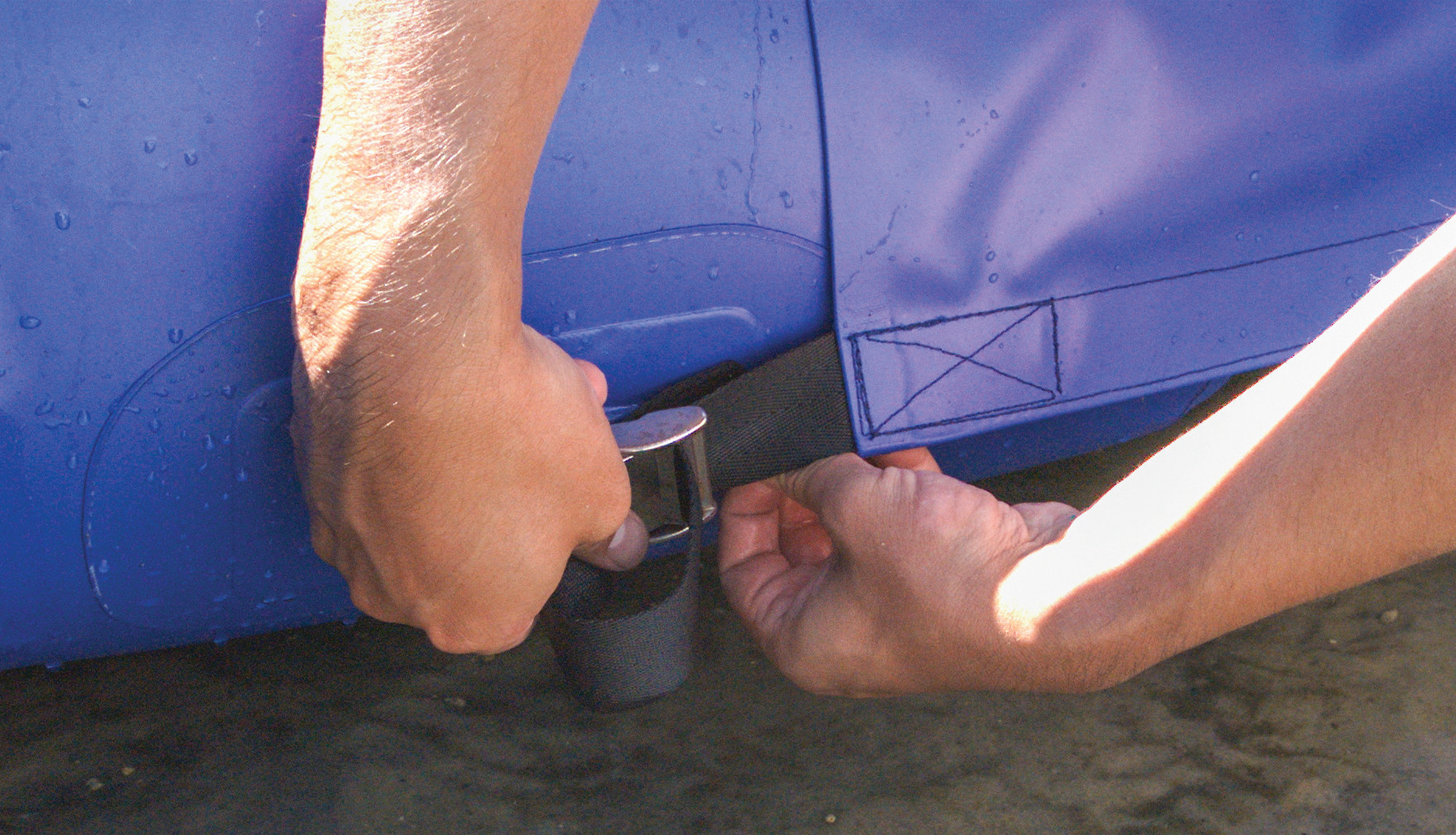

6 Open the stainless steel buckle and thread the webbing through. Pull the webbing tight.

9/11
10/11

7 Attach the webbing to the back of the cover.

11/11
